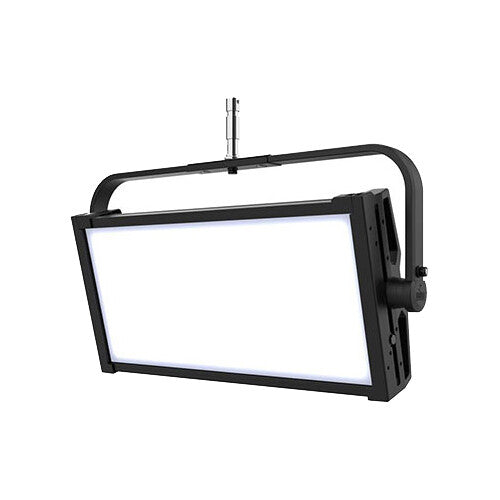

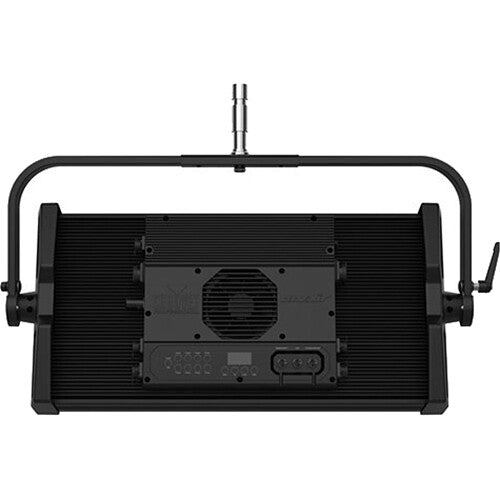

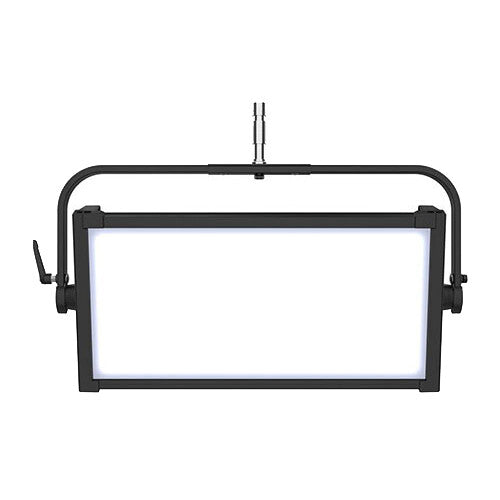

The Chauvet Professional onAir Panel 2 IP is an IP65-rated, full-spectrum LED soft light, engineered for demanding indoor and outdoor broadcast environments. It delivers superior white light quality, evidenced by high CRI/TLC and TM-30 scores, alongside a precise 16-bit dimming curve and adjustable +/- green and emulated red-shift. This fixture offers extensive color mixing capabilities and built-in customizable effects, all accessible via the intuitive onboard control menu. Designed for versatility, its rugged construction allows for easy switching between Jr Pin and Omega Bracket mounting options, complemented by a convenient drop-in slot for various accessories. Comprehensive control protocols including PWM, DMX, RDM, CRMX, Art-Net, and sACN ensure seamless integration into any professional setup. An optional 28 VDC 3-pin XLR input enables battery-powered operation, providing ultimate flexibility for remote productions.
| Light Source Type | 448 RGB/WW LEDs |
| LED Life Expectancy | 50,000 hours |
| Color Temperature Range | 2800K to 8000K |
| Color Rendering Index (CRI) | 95 |
| Beam Angle | 100.2° |
| Field Angle | 157° |
| Lumens Output | 22,508 |
| Illuminance | 349 lux @ 16.4 feet |
| Selectable PWM Frequencies | 600Hz, 1200Hz, 2000Hz, 4000Hz, 6000Hz, 25,000Hz |
| Dimming | 16-bit electronic, 4 modes, 4 curves |
| Housing Material | Aluminum alloy |
| IP Rating | IP65 |
| Control Protocols | Art-Net, sACN, DMX, CRMX, RDM |
| Input Voltage | 100 to 240 VAC, 50/60 Hz |
| Operating Temperature | -4°F to 113°F |
