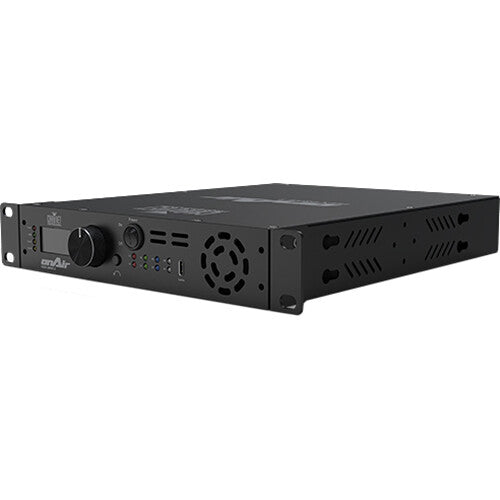

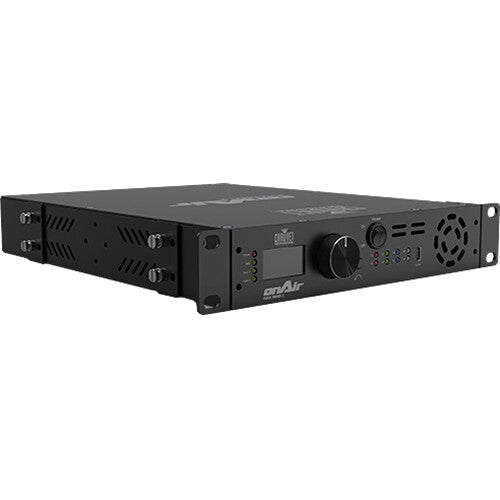

The onAir Flex Drive 2 is an advanced LED driver designed for optimal performance in TV studio environments. It offers a comprehensive one-box modular solution, integrating both power supply and driver functions. Operating at 24VDC, it facilitates extended run lengths for diverse set pieces and large light boxes. Featuring eight channels of output, this unit provides unparalleled flexibility for various tape and length configurations. Adjustable Pulse Width Modulation ensures seamless broadcast compatibility, mitigating flicker issues. With two outputs, it supports RGBW or generic 4-channel control, delivering up to 350W of total power. Assisted convection cooling ensures quiet operation, making it ideal for sound-sensitive studio applications.
| Type | LED Driver with Integrated Power Supply |
| Output Voltage | 24 VDC Constant |
| Outputs | 2 channels, supporting RGBW or 4-channel control |
| Total Output Power | 350 W |
| Output Power Per Port | 200 W |
| Control Protocol | DMX, RDM |
| DMX Channels | 8 or 10 |
| Dynamic Effects | Standalone Color Mixing, Built-in Automated Programs |
| PWM Adjustment | Adjustable for broadcast compatibility |
| Cooling | Assisted convection (quiet fan) |
| Protection | Built-in overcurrent and short circuit protection with indicator LEDs |
| Housing Material | Steel |
| Exterior Color | Black |
| Rackmount | 1U (two units per 1U space) |
| Data Connectors | 5-pin XLR, 3 Pin Phoenix Connector |
| Power Connection | Edison (Local) plug to Neutrik powerCON TRUE1 Compatible |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current (120V, 60Hz) | 400 W, 3.34 A |
| Power and Current (208V, 60Hz) | 400 W, 1.93 A |
| Power and Current (230V, 50Hz) | 400 W, 1.74 A |
| Power Linking (120V) | 2 units |
| Power Linking (208V/230V) | 5 units |
| IP Rating | IP20, dry location |
| Ambient Temperature Range | -4 °F to 113 °F |
| Certifications | CE, US Safety: UL 8750, Canadian Safety: CSA C22.22 No. 250.13 |
