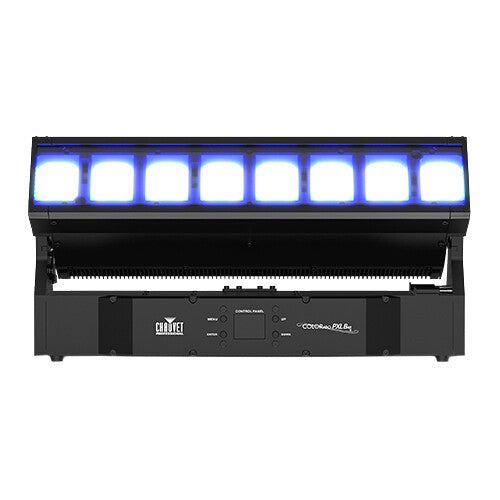

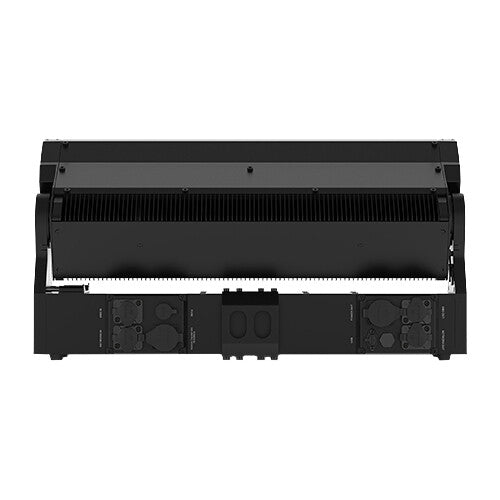

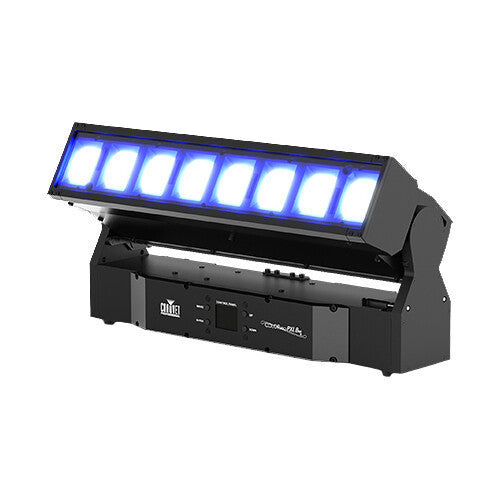

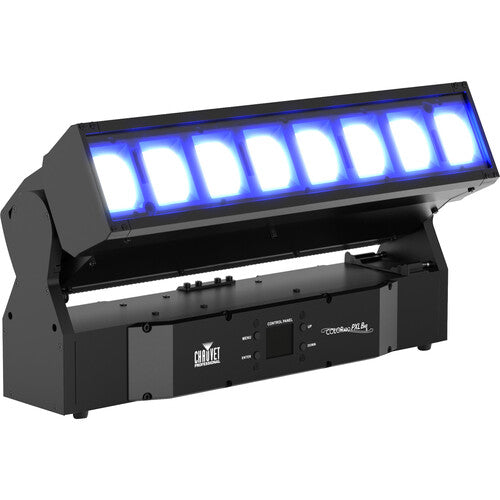

The CHAUVET Professional COLORado PXL Bar 8 is an advanced IP65-rated motorized tilting batten engineered for dynamic outdoor lighting installations. It features eight powerful 45W RGBW LEDs, offering a versatile 3.5° to 47.3° zoom range for precise beam control and pixel-mappable effects. Integrated virtual gobos and movement macros enable sophisticated foreground and background color animations. Designed for seamless edge-to-edge mounting, this fixture ensures consistent pixel pitch across multiple units. Quick and secure truss installation is facilitated by included slotted Omega brackets. Its robust aluminum alloy and die-cast construction guarantees reliability in diverse environmental conditions. The PXL Bar 8 delivers unparalleled design flexibility and robust performance for demanding professional applications.
| Light Source | 8 x 45W RGBW LEDs |
| Life Expectancy | 50,000 hours |
| Zoom Range | 3.6° to 47.3° |
| Tilt Movement | 200° |
| Control Protocols | Art-Net, Kling-Net, DMX, sACN, RDM |
| IP Rating | IP65 (Outdoor-ready) |
| Dimensions | 19.69 in (L) x 5.47 in (W) x 10.75 in (H) |
| Weight | 25.35 lbs |
| Housing Material | Aluminum alloy, Aluminum die-cast, High-impact flame-retardant polymer |
| Input Voltage | 100-240 VAC, 50/60 Hz |
| Ambient Operating Temperature | -4 °F to 113 °F |
| Illuminance (3.6°) | 12,109 lux @ 16.4 ft |
| Illuminance (47.3°) | 563 lux @ 16.4 ft |
