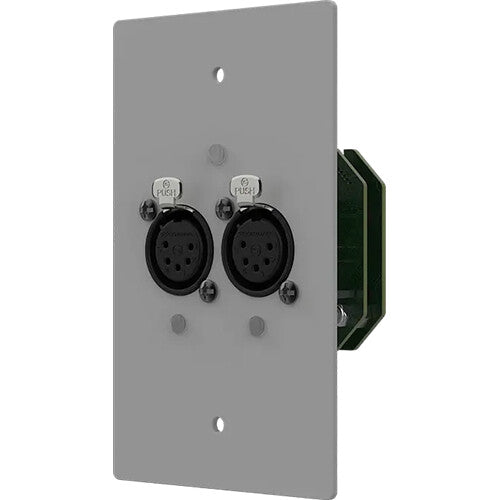

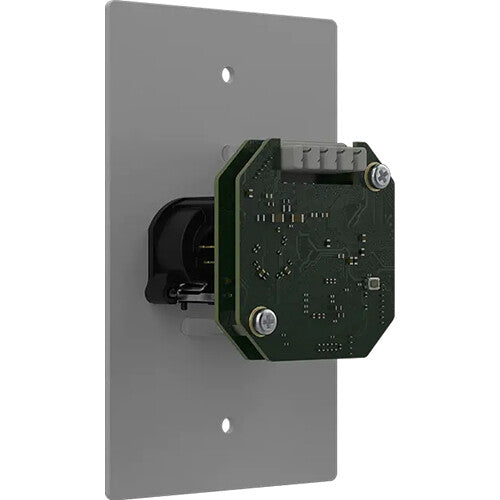

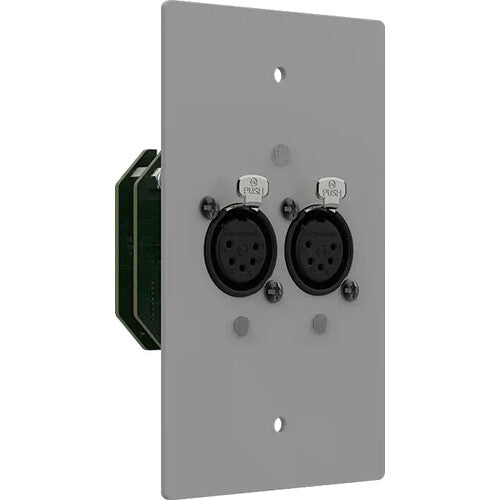

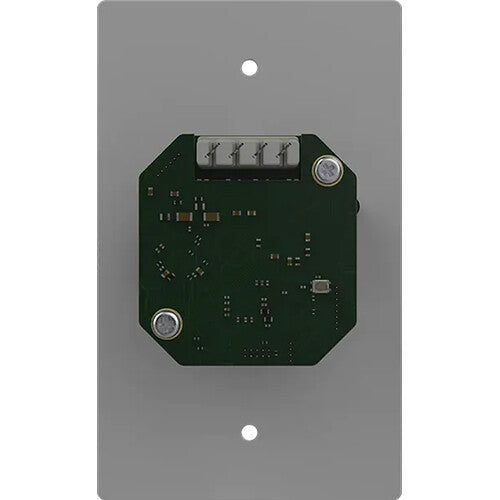

The ChamSys GeNetix GW2O is a sophisticated two-port wall mount PoE powered node designed for advanced lighting control installations. It seamlessly integrates into standard single gang backboxes across EU, US, and UK regions. Featuring both male and female physical RDM Direct DMX ports, this versatile node supports comprehensive DMX input and output functionalities. Engineered for fixed installations, it provides robust support for industry-standard Art-Net and sACN protocols. Configuration is effortlessly managed via ChamSys consoles, an intuitive in-built web server, or directly over Art-Net. Key features include flexible DMX merging, DMX fallback for redundancy, and scene storage capabilities, ensuring reliable performance. Its advanced node configuration allows for precise control, while selectable lost data behavior modes enhance system stability and integrity.
| DMX Ports | 2 (Input and Output) |
| Network Port | 1 (PoE RJ45 Connector) |
| Power Source | Power over Ethernet (PoE) |
| Installation Type | Standard Single Gang Wall Mount |
| DMX Port Options | Male or Female RDM Direct |
| Faceplate Colors | Black or White (Interchangeable) |
| Supported Protocols | Art-Net, sACN, RDM, ChamNet |
| Configuration Interface | ChamSys Consoles, Web Server, Art-Net |
| DMX Merging Modes | HTP, LTP, Lowest IP, Highest IP, None |
| Scene Storage | 10 DMX scenes |
| Lost Data Behavior | Hold, None, Zeroes |
