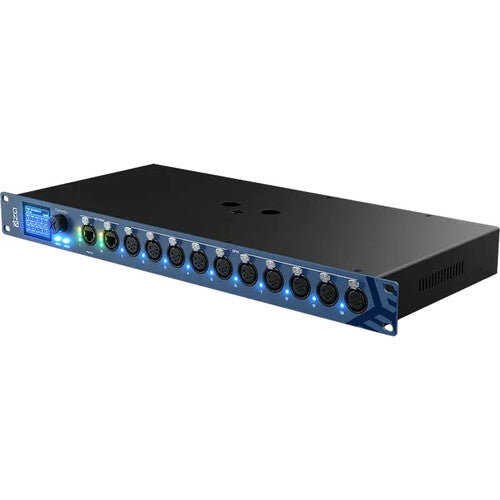

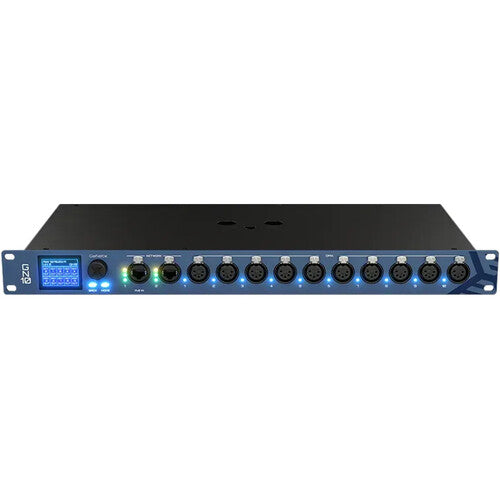

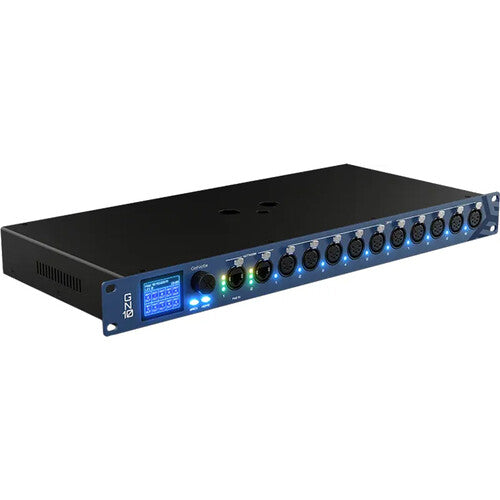

The ChamSys GeNetix GN10 is a versatile multipurpose DMX Ethernet node, specifically engineered for sophisticated remote data distribution in professional lighting setups. It offers seamless integration through comprehensive support for industry-standard protocols including Art-Net, sACN, and RDM, ensuring expansive system compatibility. Users can configure its 10 DMX ports flexibly as inputs or outputs, complete with adjustable DMX timings for precise control. Powering options include Power over Ethernet (PoE) or direct mains power via powerCON TRUE1, enhancing its deployment adaptability across various environments. Integrated LTC and MIDI ports facilitate accurate Timecode and MIDI note input/output for MagicQ systems, crucial for complex show synchronization. When connected via USB, the GeNetix GN10 unlocks full MagicQ PC functionality, extending powerful software control across Linux, Mac, or PC platforms. This device's adaptable form factor allows for standalone use, truss mounting, or convenient rack installation with included hardware.
| DMX/RDM Outputs | 10 Ports |
| Network Connectivity | Dual RJ45 Ethernet Ports |
| Power Options | PoE (Power over Ethernet) or Mains (powerCON TRUE1) |
| Supported Protocols | Art-Net, sACN, RDM |
| Timecode Support | LTC (Linear Timecode) Input/Output |
| MIDI Connectivity | MIDI Input/Output |
| Configuration Interface | Web Server, Front Panel Display, ChamSys Consoles |
| DMX Universe Capacity | Up to 64 Universes |
| USB Functionality | Unlocks MagicQ PC Systems |
| Mounting Options | Standalone, Truss-Mount, Rack-Mount |
| Width | 19.0 inches |
| Depth | 7.9 inches |
| Height | 1.73 inches |
| Weight | 5.95 lbs |
