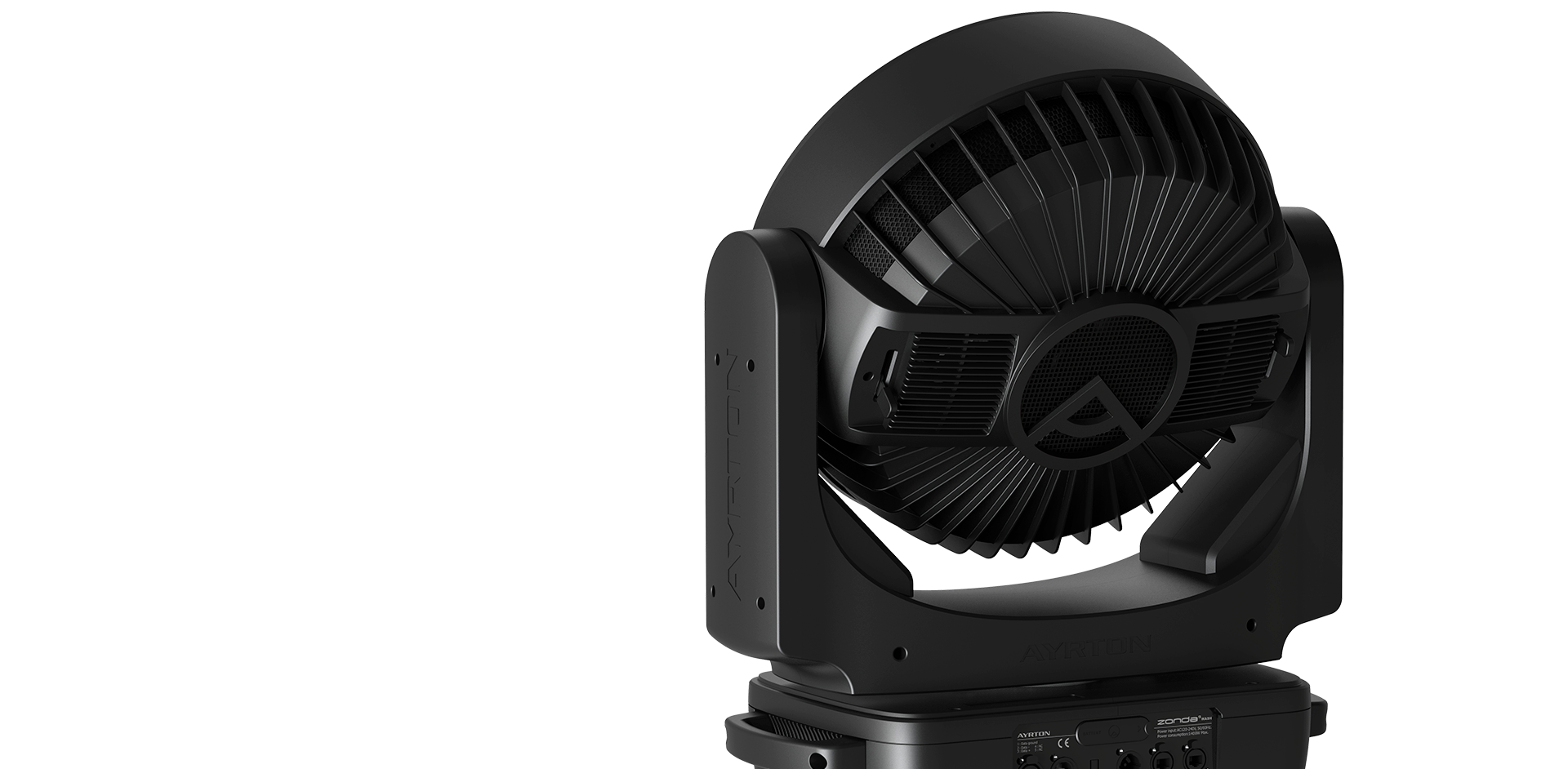

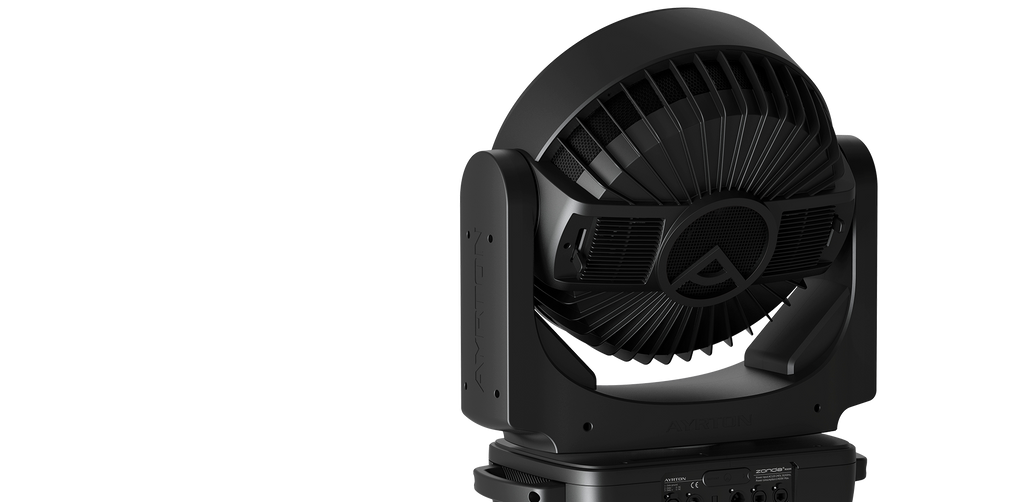

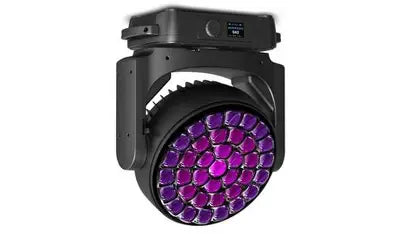

The Zonda 9 Wash is a high-performance luminaire engineered for professional stage lighting environments. It utilizes a 40-Watt LED source with RGB+W additive color synthesis to deliver a powerful 25,000-lumen output. The proprietary optical system features 37 PMMA lenses and glass light guides for perfectly homogeneous color mixing. A versatile 14:1 zoom ratio provides a wide range from 4 to 56 degrees for precise beam control. Advanced cooling and silent ventilation modes ensure reliable performance in noise-sensitive studio applications. The internal structure is optimized to reduce weight while maintaining high contrast and light quality. This fixture allows for individual control of concentric circles to adjust the size of the emitting surface.
| Light Source | 37 x 40W RGBW High-Power LED |
| Luminous Flux | 25,000 Lumens |
| Zoom Range | 4° to 56° (14:1 ratio) |
| Front Lens Diameter | 15.12 inches |
| Power Supply | 120V to 240V, 50/60Hz, 1,400W Max |
| Movement | 540° Pan and 270° Tilt |
| IP Rating | IP20 |
| Control Protocols | DMX-RDM, ArtNet, sACN |
| Color Mixing | 4.29 Billion Colors (8-bit resolution) |
| Operating Temperature | 14°F to 113°F |
