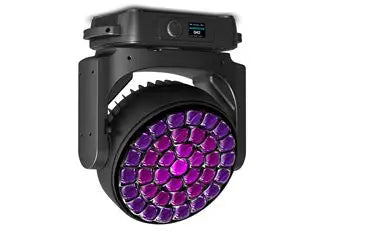

The Zonda 9 FX utilizes thirty-seven 40W RGB+W LED sources to deliver a massive 25,000-lumen output for high-impact stage applications. Its proprietary optical system features a 384 mm front lens cluster and glass light guides for exceptional color mixing. Integrated LiquidEffect technology enables the creation of complex, high-definition graphic effects between the primary lenses. This luminaire offers a wide 14:1 zoom range from a sharp 4.0-degree beam to a broad 56-degree wash. Infinite continuous rotation on both pan and tilt axes allows for dynamic 3D volumetric effects in any environment. The internal structure is engineered for durability while maintaining a compact footprint suitable for touring. Advanced cooling systems ensure quiet operation across auto, stage, and studio ventilation modes.
| Light Source | 37 x 40W RGB-W High-Power LED sources |
| Luminous Flux | 25,000 lumens |
| Zoom Range | 4.0° to 56° (14:1 ratio) |
| Beam Effects | LiquidEffect high-definition graphic effects |
| Movement | Infinite continuous Pan and Tilt rotation |
| Power Supply | 120 to 240 Volts - 50/60Hz, 1,400W max |
| Front Lens Diameter | 15.12 inches (estimated): true |
| IP Rating | IP20 |
