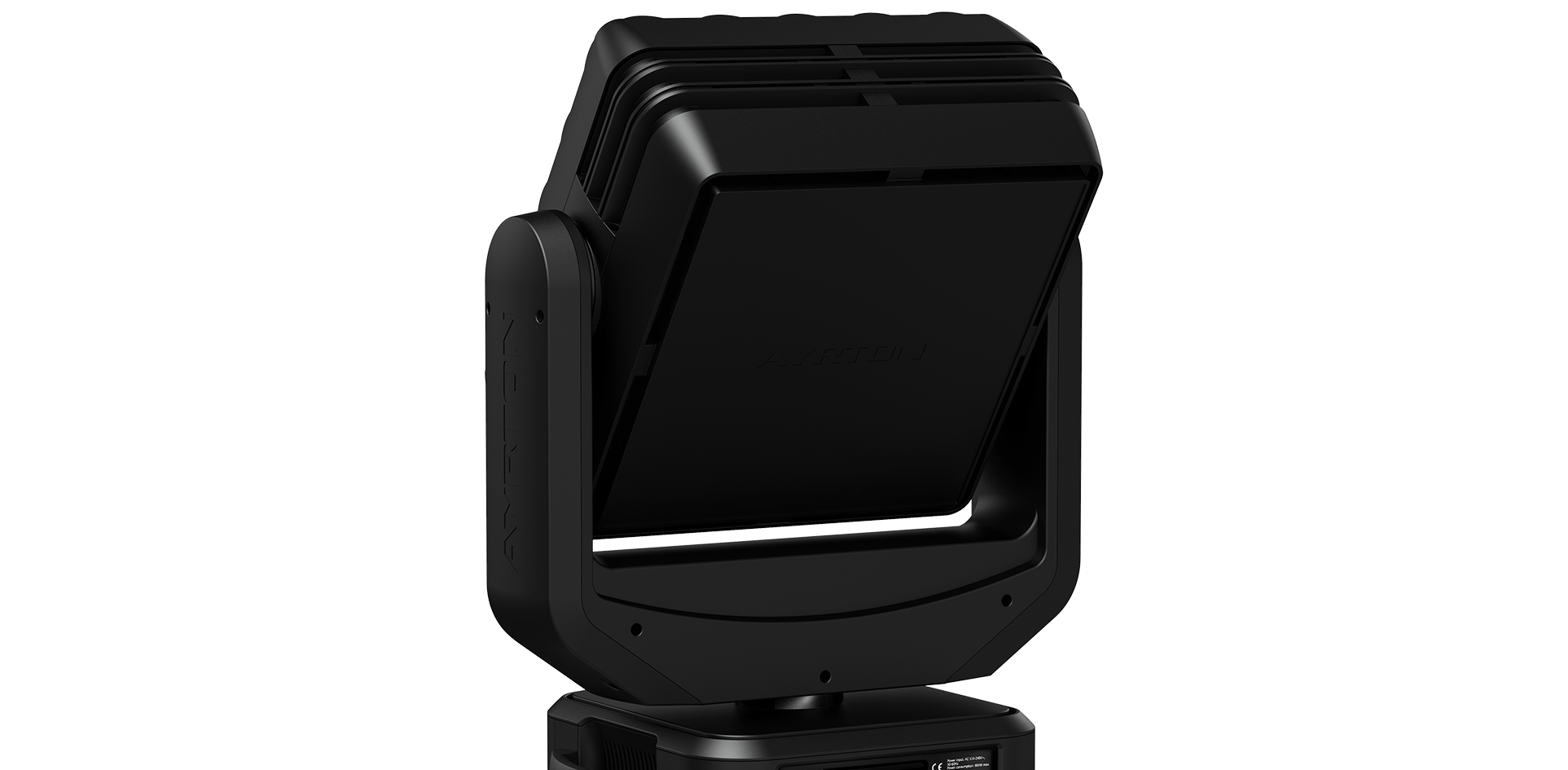

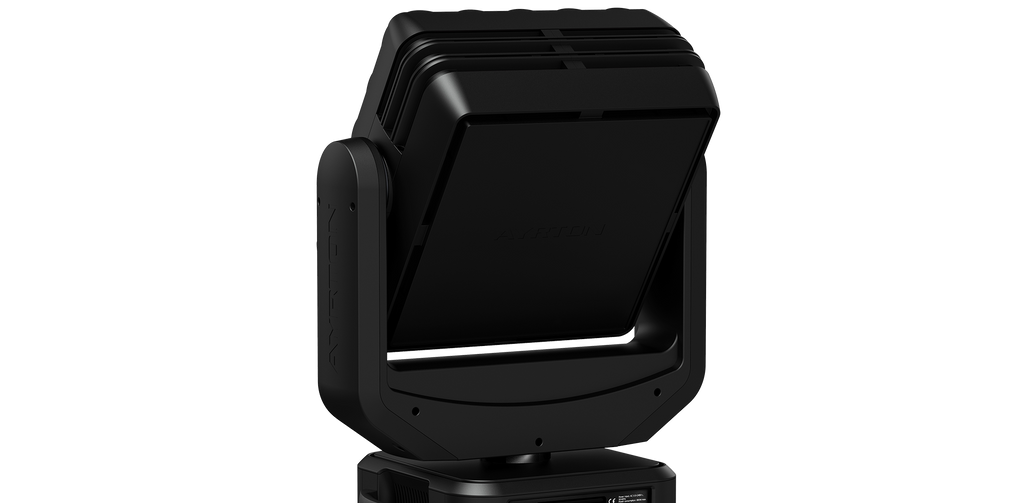

The MagicPanel FX is a high-performance multi-function luminaire featuring a revolutionary 15:1 optical zoom system. Its 5x5 array of squared lenses enables complex 2D graphical effects and powerful 3D volumetric beams. Each of the 25 isolated RGBW emitters provides ultra-powerful output totaling 13,500 lumens. The fixture includes continuous, unlimited pan and tilt rotation for dynamic lighting displays. An active phase-change liquid cooling system ensures reliable performance during intensive wash light operation. Professional connectivity options include DMX-RDM, ArtNet, sACN, and integrated wireless CRMX technology. This robust unit is designed for touring, television applications, and high-end event production.
| Material | Aluminum and steel skeleton with fire-retardant ABS PC covers |
| Light Source | 25 x 35W RGBW High-Power LED emitters |
| Luminous Flux | 13,500 Lumens |
| Zoom Range | 3.6° to 53° motorized linear zoom (15:1 ratio) |
| Movement | Infinite Pan and Tilt rotation with automatic repositioning |
| Control Protocols | DMX-RDM, ArtNet, sACN, and Wireless CRMX TiMo RDM |
| Cooling System | Advanced phase-change liquid cooling with heat pipe technology |
| Dimmer | 0-100% electronic dimmer without color variation |
| Strobe | Electronic white or color strobe, 1 to 25 flashes per second |
| IP Rating | IP20 for indoor professional environments |
