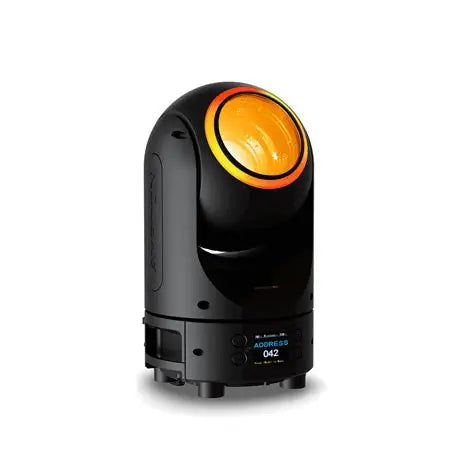

The MagicDot Neo is an ultra-fast moving head designed for high-performance indoor and outdoor stage lighting. It utilizes a 120W multi-chip RGB-L LED source paired with a high-efficiency 100mm optic for superior output. A 10:1 zoom ratio enables rapid transitions between a tight 3° beam and a wide 30° wash. The phase-change heat pipe cooling solution ensures reliable operation at a low 160W power draw. Designers can create complex volumetric effects using the sixty peripheral RGB LEDs for unique visual signatures. Continuous infinite pan and tilt rotation allows for radical, multi-directional light configurations. Its IP65-rated die-cast aluminum housing provides durability in saline environments.
| Material | Die-cast aluminum and copper heatsinks with ABS PC covers |
| Light Source | 120W multi-chip RGB-L LED source |
| Luminous Flux | 3,000 lumens |
| Zoom Range | 3° to 30° |
| IP Rating | IP65 |
| Movement | Infinite pan and tilt rotation |
| Power Supply | 100 to 240 Volts – 50/60Hz, 160W maximum |
| Control Protocols | DMX-RDM, ArtNet, sACN, and Wireless CRMX |
