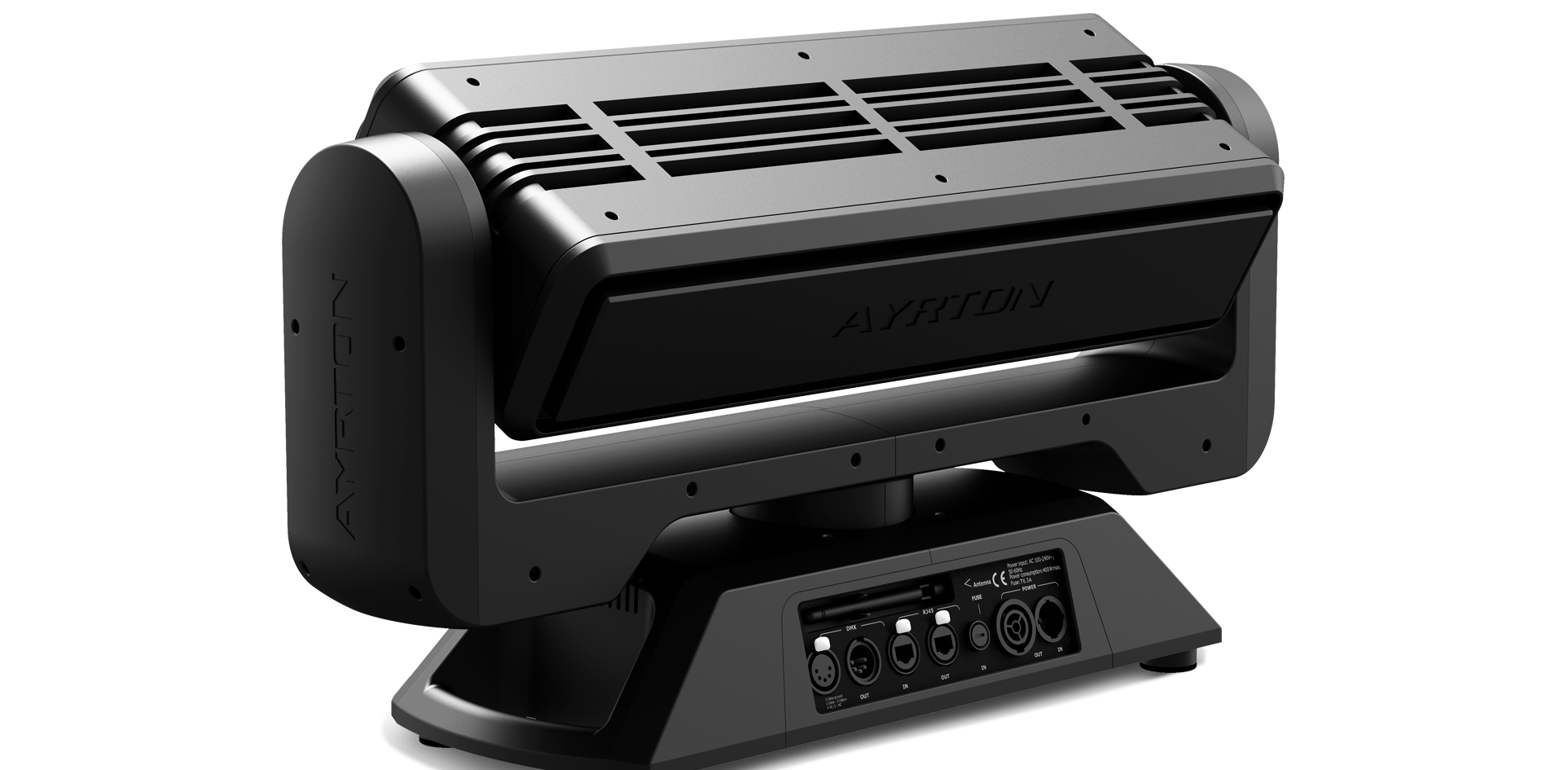

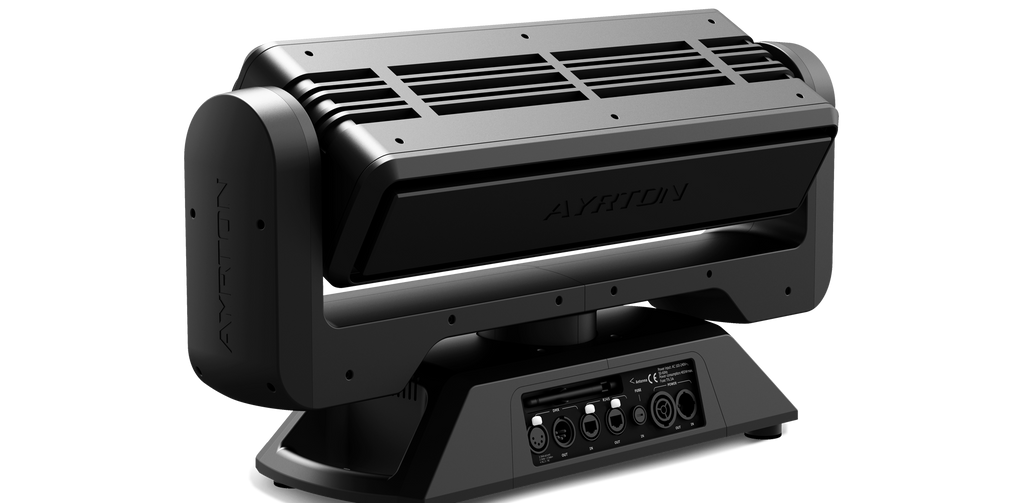

This professional luminaire features a revolutionary 15:1 optical zoom system and seven high-output 35W RGBW LEDs. The proprietary optical design utilizes seven squared 65 mm lenses to project intense, crisp beams for 3D volumetric effects. Designers can achieve infinite pan and tilt rotation alongside individual LED control for complex virtual scenery. Extended connectivity options include DMX-512, RDM, ArtNet, sACN, and integrated wireless CRMX. The advanced cooling system ensures quiet operation across stage and studio environments. A robust housing of aluminum and steel provides durability for demanding global musical tours. Every unit delivers a consistent 4,200 lumen output with a luminous intensity of 579,600 candela.
| Material | Aluminum and steel metal plates with self-extinguishing fire retardant ABS PC covers |
| Dimensions | 24.1 x 12.3 x 7.5 inches |
| Light Source | 7 x 35W RGBW High-Power LED emitters |
| Optical Zoom | 15:1 ratio with 3.6° to 53° beam aperture |
| Luminous Flux | 4,200 lumens |
| Movement | Continuous infinite pan and tilt rotation |
| Control Protocols | DMX-512, RDM, ArtNet, sACN, and Wireless CRMX TiMo |
| Power Supply | 100 to 240 Volts - 50/60 Hz; 400W maximum consumption |
