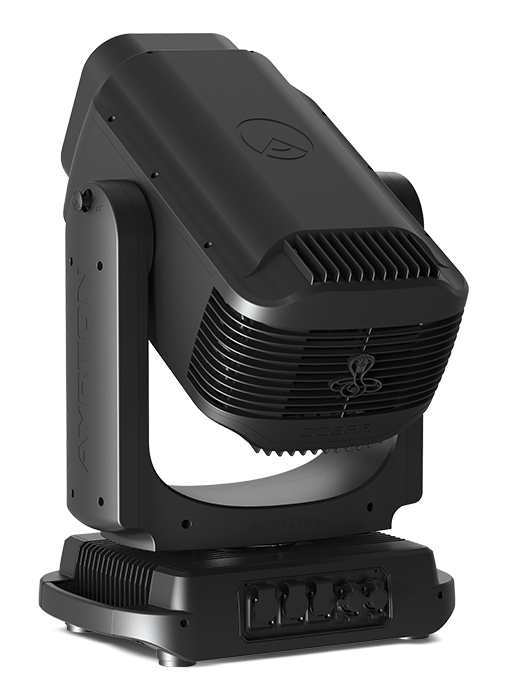

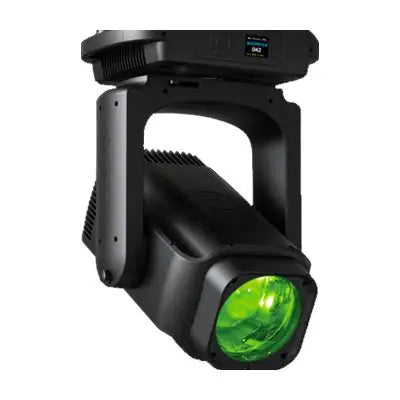

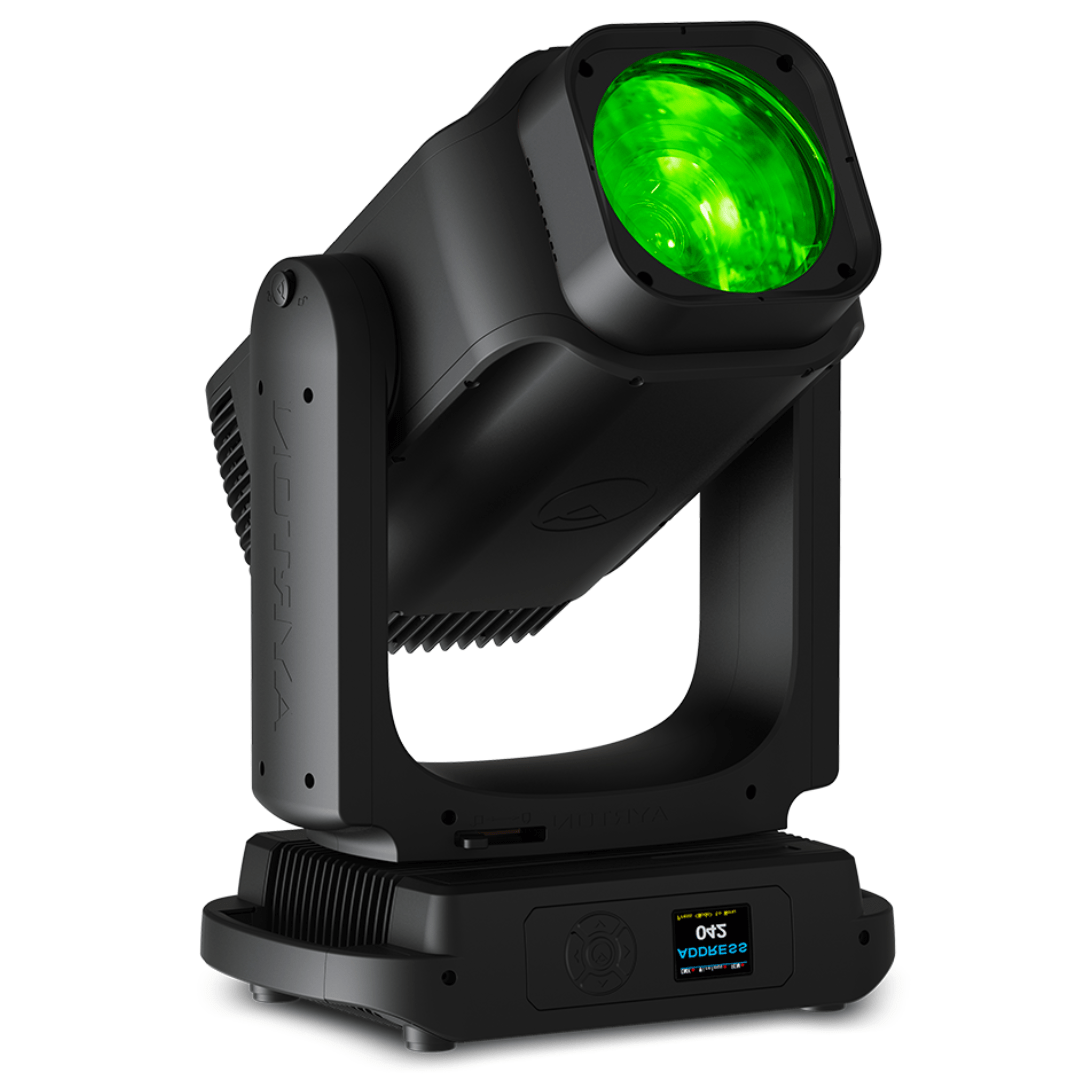

This professional phosphor laser source luminaire delivers unprecedented beam definition and a native contrast ratio for superior visual impact. Featuring a 170 mm frontal lens and a massive 38:1 zoom ratio, it produces sharp beams from 0.6° to 23°. The IP65-rated housing ensures reliable performance in extreme outdoor environments and indoor stages alike. A sophisticated CMY color mixing system and variable CTO provide precise color control for demanding lighting designers. Integrated SunProtect-65 and ColdProtect-65 systems safeguard the internal optics against sunlight and freezing temperatures. With infinite pan and tilt rotation, this versatile fixture enables complex volumetric effects and high-speed movement. It is the only luminaire capable of illuminating objects several kilometers away for large-scale productions.
| Material | Die-cast aluminum base with steel metal plates and fire-retardant ABS PC covers |
| Light Source | Next-generation speckle-free phosphor laser source |
| Luminous Flux | 1,544,000 lux at 32.8 ft (10 m) |
| Beam Aperture | 0.6° to 23° with 38:1 zoom ratio |
| Color System | CMY mixing with 2D-ColorWheel containing 21 complementary filters |
| Movement | Infinite pan and tilt rotation with 8- or 16-bit resolution |
| IP Rating | IP65 (Waterproof and Dustproof) |
| Front Lens Diameter | 6.69 in (170 mm) |
| Power Supply | 100 to 240 Volts – 50/60Hz, 480 W maximum |
| Operating Temperature | -4°F to 113°F (-20°C to 45°C) |
