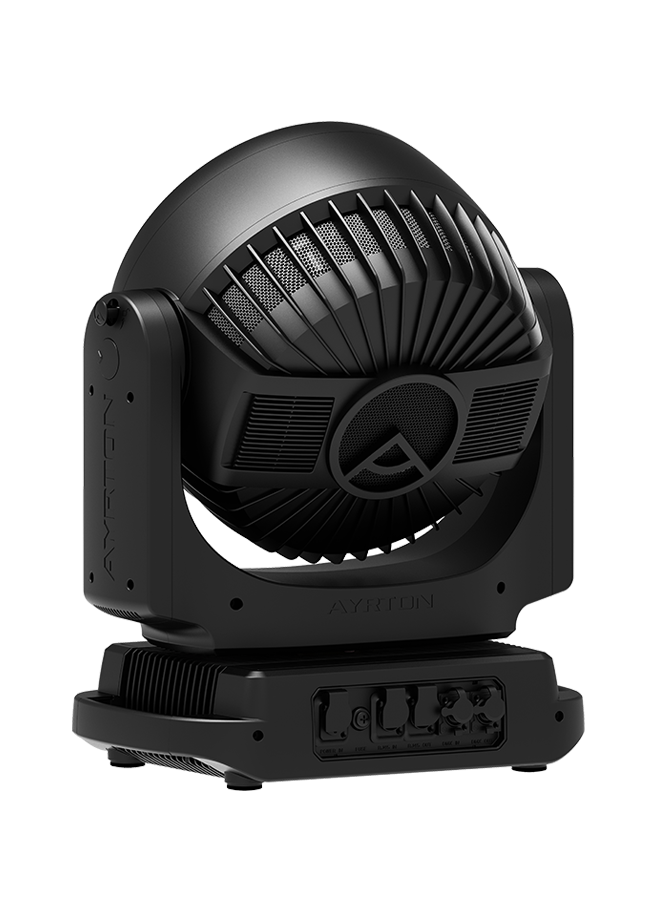

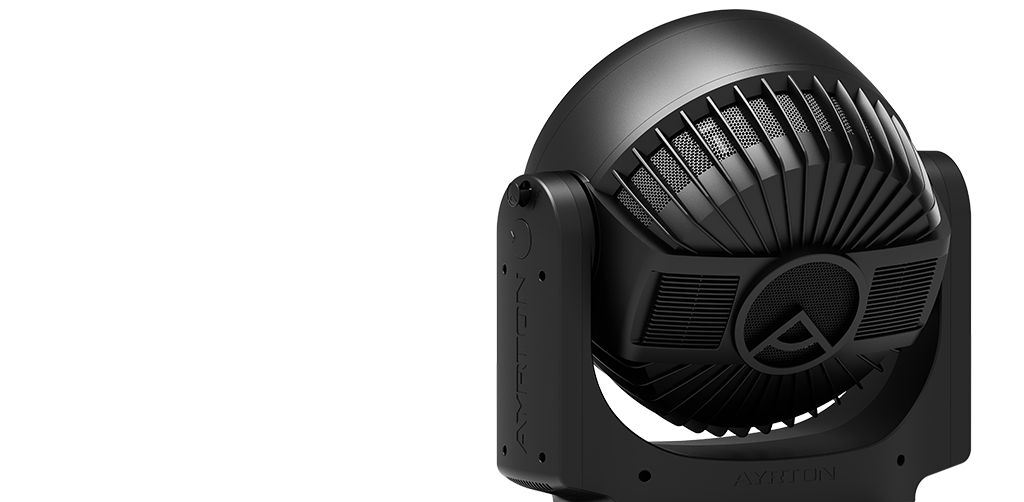

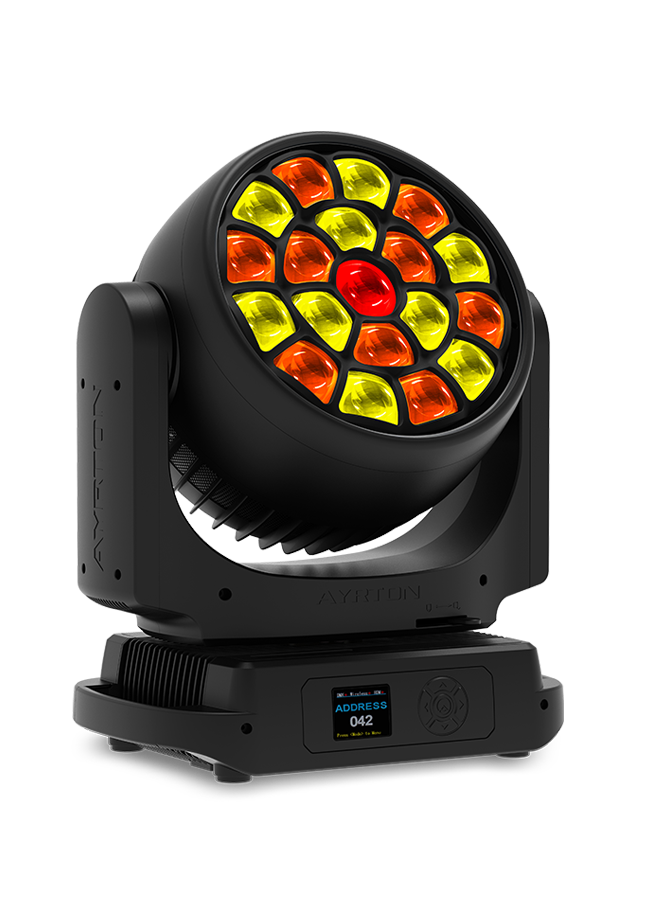

This weather-sealed effects luminaire delivers exceptional creative potential for both indoor and outdoor professional environments. It features a proprietary optical system with 19 PMMA lenses and glass light guides for high-intensity performance. The fixture produces 13,000 lumens of output from 19 high-power 40W RGB+W LED sources. With a 14:1 zoom ratio, users can achieve beam apertures ranging from 4° to 56°. A specialized submersible ventilation system ensures optimal cooling within the protective IP65-rated housing. Precision movement is handled by high-resolution stepper motors providing 540° pan and 270° tilt. This machine enables perfect color reproduction across 4.29 billion combinations for sophisticated lighting designs.
| Light Source | 19 x 40W RGB-W High-Power LED sources |
| Luminous Flux | 13,000 lumens |
| Zoom Range | 4° to 56° (14:1 ratio) |
| IP Rating | IP65 (Weather-sealed) |
| Movement | 540° Pan / 270° Tilt with automatic repositioning |
| Power Consumption | 950 W maximum |
| Color Depth | 4.29 billion colors (8-bit resolution) |
| Cooling System | Submersible ventilation in non-waterproof compartment |
| Housing Material | Die-cast aluminum base with fire-retardant ABS PC covers |
| Front Lens | 280 mm cluster with anti-reflective treated glass |
