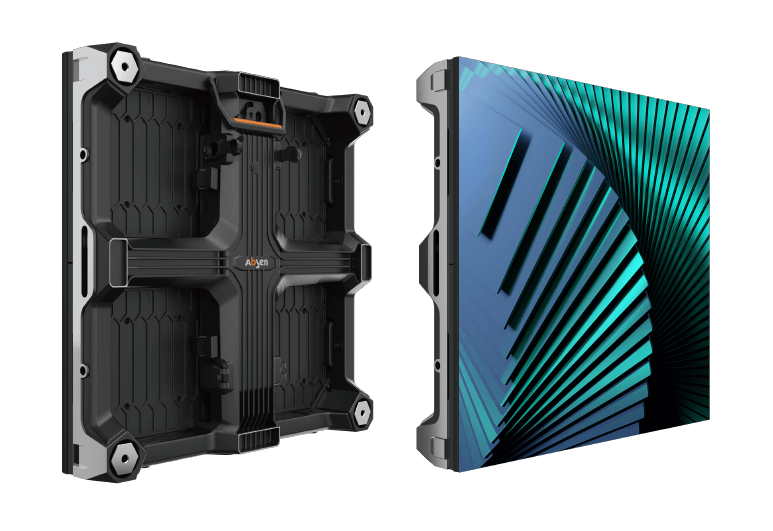

The Absen MR Series offers a professional LED floor display solution, featuring an innovative two-in-one integrated cabinet and frame design for a thinner, lighter panel. This robust system ensures safety and firmness with a high-strength frame, supporting up to 512 pounds per square foot (2500 kg/m²) for dynamic stage activities. Specifically, the MR2.5 utilizes GOB packaging for delicate display effects and a deep black, non-reflective surface ideal for in-camera performance in xR stages and virtual studios. The MR4.8 matte version boasts 16-bit grayscale, a 7680Hz refresh rate, and 251Hz frame rate, delivering exceptional visual quality for virtual production. Its user-friendly design allows for convenient front installation, and both modules and power box support front maintenance. An optional interactive matte version of the MR4.8 incorporates built-in sensor chips, providing an engaging and immersive interactive experience. These versatile panels are engineered for superior performance and durability in demanding professional environments.
| Design | Innovative two-in-one integrated cabinet and frame |
| Panel Dimensions | 19.69 inches (W) x 19.69 inches (H) |
| Adjustable Height | 0 to 0.79 inches (0-20 mm) |
| Load-Bearing Capacity (MR4.8) | 512 lbs/sq ft (2500 kg/m²) |
| Pixel Pitch Options | 2.5mm, 4.8mm |
| MR2.5 Packaging | GOB (Glue-on-Board) |
| MR4.8 Grayscale | 16-bit |
| MR4.8 Refresh Rate | 7680 Hz |
| MR4.8 Frame Rate | Up to 251 Hz |

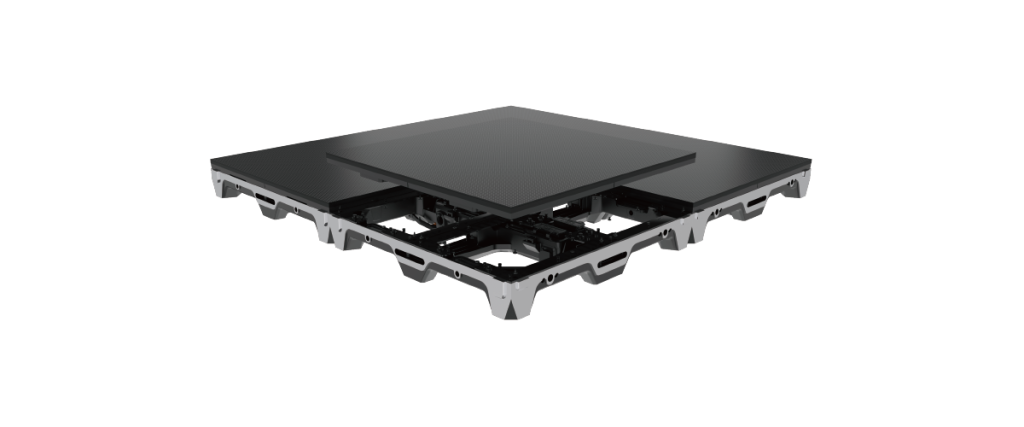

| Installation | Front accessible |
| Maintenance | Front accessible for modules and power box |
| Surface Finish (MR4.8) | Matte or Glassy, scratch-resistant |
| Interactive Function (MR4.8) | Optional built-in sensor chips |
