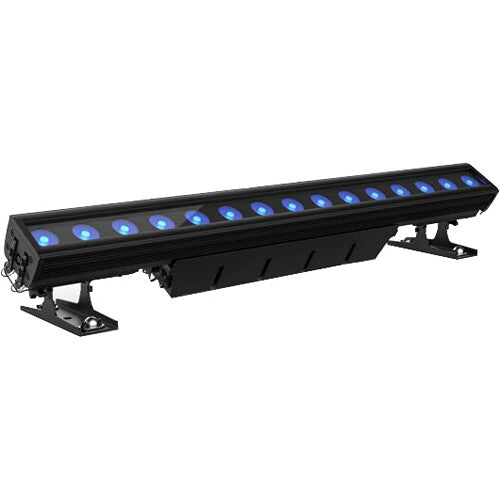

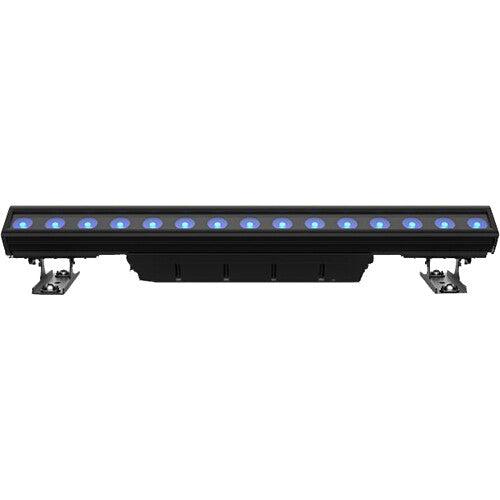

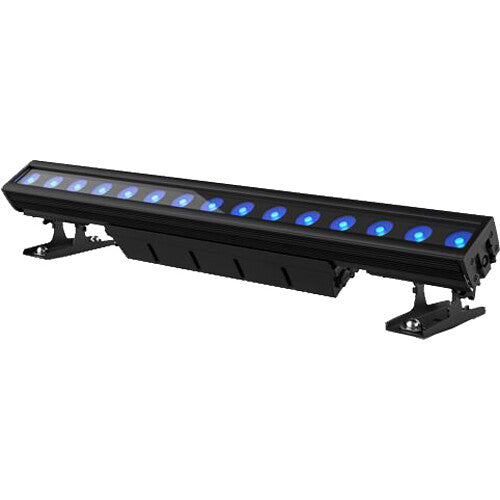

The COLORado Batten Q15 is a robust, tour-grade quad-color RGBW LED batten, engineered for demanding professional lighting applications. Its 15 individually controllable LEDs deliver seamless pixel-mappable effects, eliminating visual artifacts for pristine light shows. This IP65-rated fixture provides exceptional output, complemented by selectable, smooth dimming curves and precise color temperature presets from 1800 K to 8000 K. A native 16° beam angle ensures impressive reach, further enhanced by an included wall wash filter for a smooth 16° by 43° spread. Versatile mounting options include adjustable trunnions with Omega Bracket adapters, innovative end-cap, and back plate solutions for diverse installations. Designed for touring, live events, television, and theatrical productions, it ensures reliable performance in any environment. A stowable glare shield is also integrated for enhanced beam control.
| Light Source | 15 LEDs (quad-color RGBW) 20 W, 800 mA |
| LED Life Expectancy | 50,000 hours |
| Color Temperature Range | 1800 K to 8000 K |
| Installed Optics | 16° |
| Beam Angle (Horizontal) | 15.5° |
| Beam Angle with Filter (Horizontal) | 41.9° |
| Beam Angle (Vertical) | 14.7° |
| Beam Angle with Filter (Vertical) | 15.3° |
| Field Angle (Horizontal) | 28.6° |
| Field Angle with Filter (Horizontal) | 77.9° |
| Field Angle (Vertical) | 28.1° |
| Field Angle with Filter (Vertical) | 32.1° |
| Lumens (Total) | 6,324 |
| Lumens with Filter (Total) | 5,547 |
| Illuminance (Total) @ 5m | 2399 lux |
| Illuminance with Filter (Total) @ 5m | 653 lux |
| Selectable PWM | 1,200 Hz, 2,000 Hz, 2,400 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz |
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Strobe Rate | 0 to 25 Hz |
| Standalone Color Mixing | Yes |
| Color Temperature Presets | Yes |
| Dim Modes | 5 |
| Built-in Automated Programs | Yes |
| Customizable Programs | Yes |
| Recall Custom Programs | Yes |
| Exterior Color | Black |
| Housing Material | Aluminum alloy |
| Power Connection | Edison (Local) plug to Seetronic Powerkon IP65 |
| Power Input | Seetronic Powerkon IP65 |
| Power Output | Seetronic Powerkon IP65 |
| Data Connectors | 5-pin IP65 XLR |
| Power Cable Length | 5 ft (60 inches) |
| Control Protocol | DMX, RDM |
| DMX Channels (1-Cell) | 4, 6, 8, 10 |
| DMX Channels (15-Cell) | 45, 60, 64, 66, 76 |
| Modes/Personalities | 9 personalities |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power and Current @ 120V | 194 W, 1.606 A |
| Certifications | CE, MET, FCC |
| IP Rating | IP65, temporary outdoor/wet use |
| Operating Temperature (Ambient) | -4 °F to 113 °F |
